Product Description

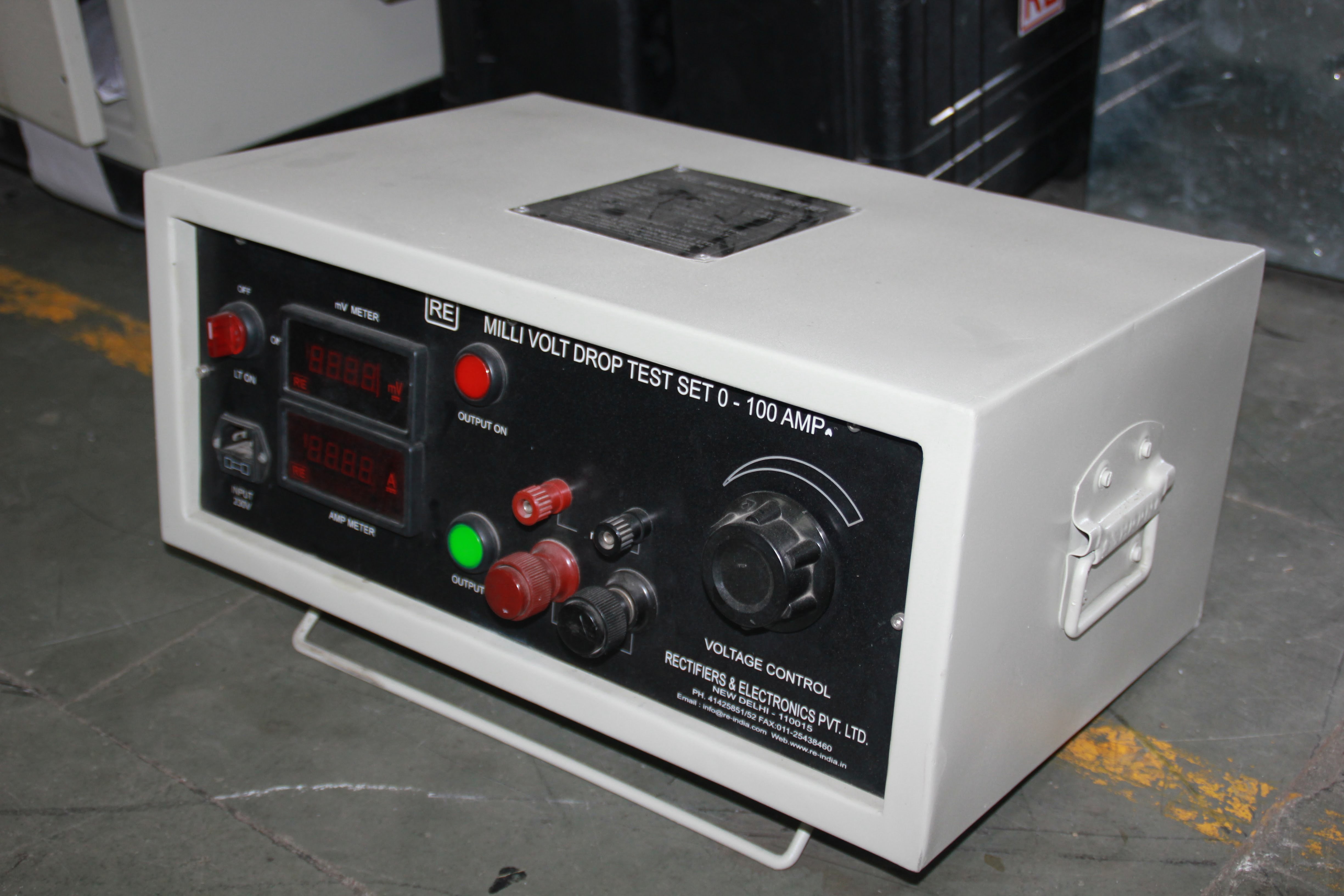

Milli Volt Drop Test Set 0-100/200..3000Amp. is capable to measure millivolts between 1mV to 2000mV.The instrument can provide test current between 0-100/200..3000Amp subject to the capacity chosen, load resistance and supply voltage. The system uses the four-terminal method - two for current supply and two for measurement. The unithas the high current capability and is of a compact design suitable for testing high current contacts of circuit breakers, switches, busbar joints and other application where high current junctions exist.
Accessories
1.5meter lead with crocodile clips.
Technical Specifications
- Input Voltage: 200/250 V Up to 1000A of Output Current
- 400V from 1000A to3000A Output Current
- Input Current: Up to 40Amp. up to1000A Output Current
- Up to 40Amp. from 1000A-3000A Output Current
- DC Output Voltage: Up to 12 V
- DC Output Current: Maximum up to 3000 Amp Continuous
- AC Ripple in DC Supply with in 5%
- Input: ON-OFF Switch
- Input On Indicator
- Push Button to actuate and Cut off DC Supply.
- 1.5 Meter Lead with Crocodile Clip.
- Push Button shall be provided to indicate the mV Drop.
- mV meter to measure 200.0mV with least count of .1mV.
